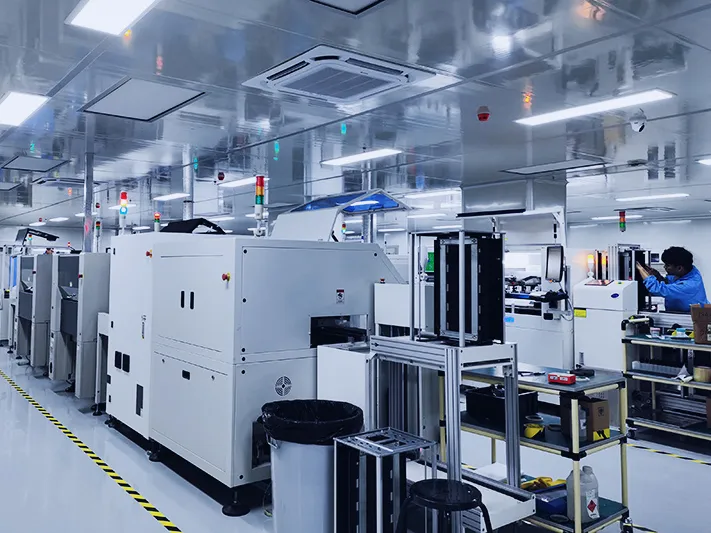

Services

First contact and Mutual Acquaintance

usually we will sign a NDA (non-disclosure agreement) with customer before the inquiry/RFQ.

Inquiries & Quotation

There will be some negotiations regarding price terms and payment terms.

Samples Trial

Samples Inspection & Samples Approval.

Mass Production

Quality Inspection & Testing.

Samples/Small Quantities Shipment

Ship via FedEx/DHL/UPS EXPRESS or by air.

Large Value/Big Quantities Shipment

Usually ship by sea (packed in containers).

AFTER-SALES

We Provide 2 Years Warranty Period

Imperfect situations inevitably occur from time to time. In case our PCB or PCBA (assembled boards) are not usable due to our fault, you can ask for compensation. We can refund to your account directly or credit your PCBAStore account, these credits are available to pay for your next orders with us.

We can also rework the unusable boards or re-fabricate new boards and re-ship to you at our cost. Your cooperation is appreciated to solve the problem if rework is needed.

We Accept Payment Via PayPal, Western Union and T/T.

Product Processing Process.

Overall Process :-PCB Fabrication – Components Sourcing – PCB Assembly – PCBA Testing – Enclosure Assembly – Complete Product Testing – Packaging – OQC

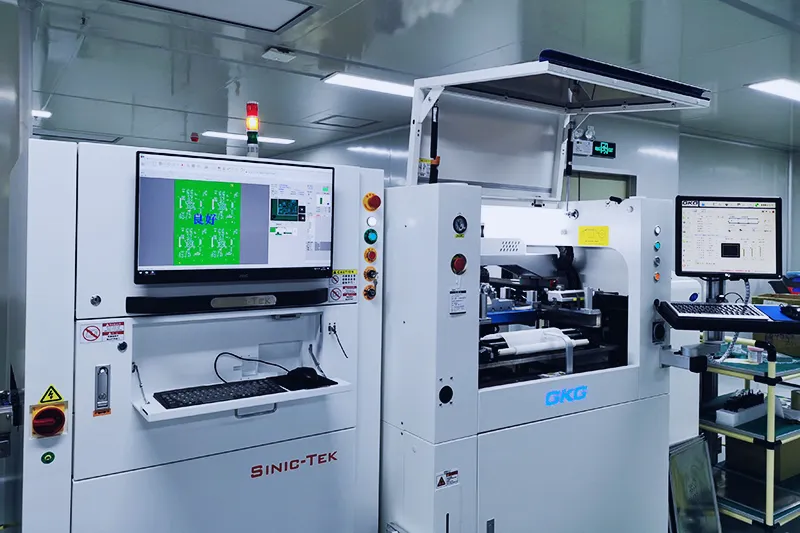

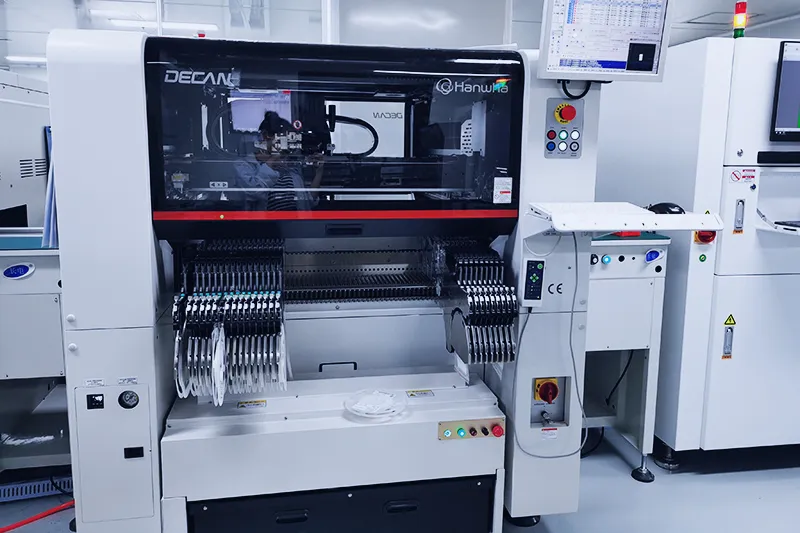

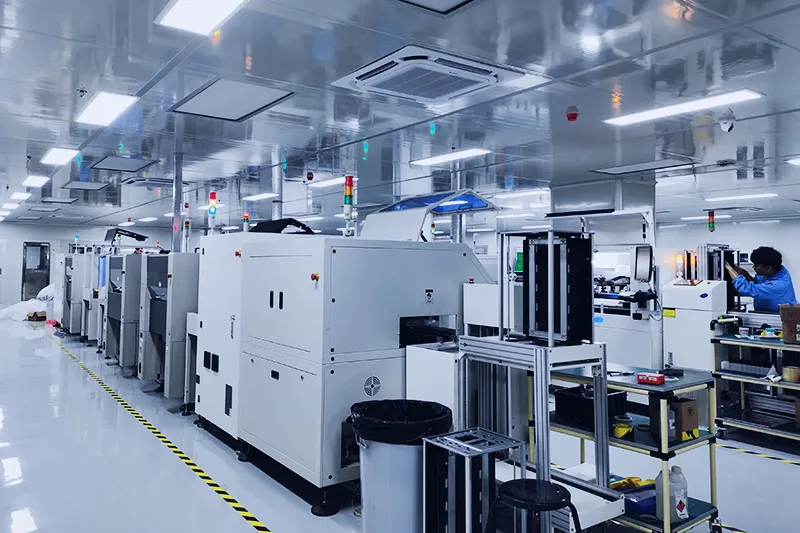

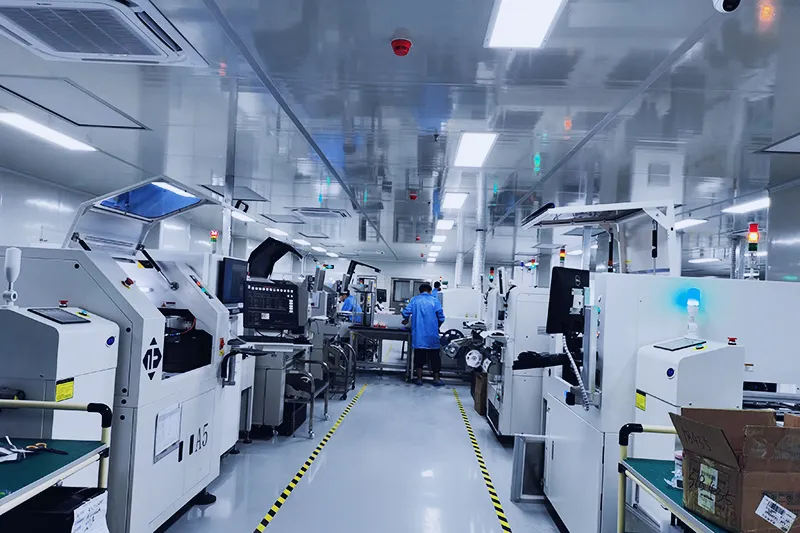

PCB Assembly SMT Process:-IQC – Materials Preparation – Bare Boards Loading – Automatic Solder Paste Printing – 3D SPI Inspection- SMT (Pick & Place) – Reflow Soldering – AOI Inspection – QA

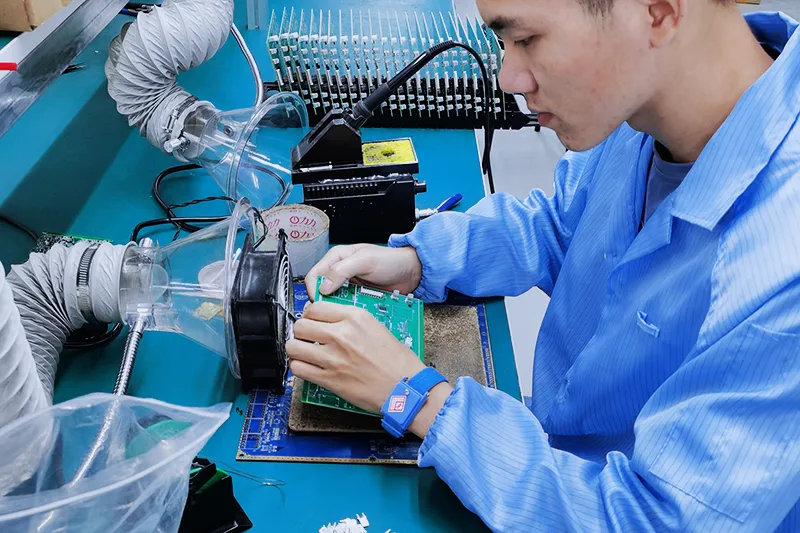

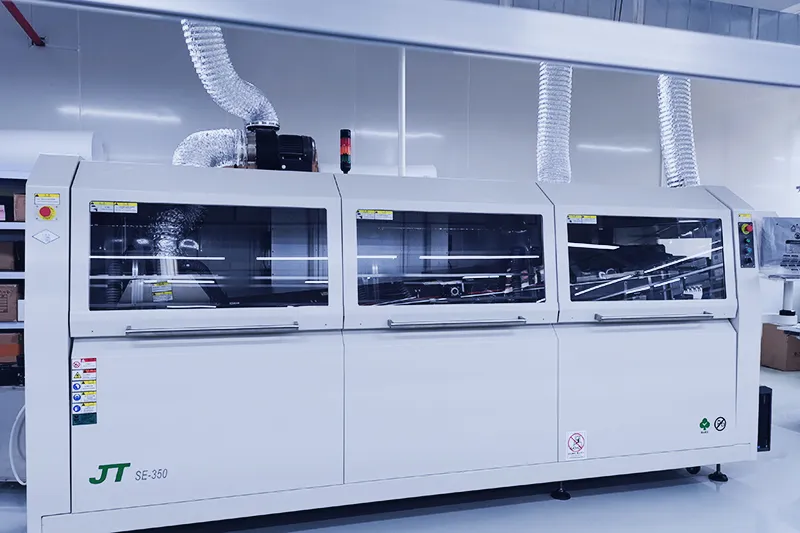

PCB Assembly THT Process:-IQC – Materials Preparation – Through-hole Parts Insert – Wave Soldering – Hand Soldering & Maintenance – ICT Test – FCT Test – Conformal Coating – QA

Our Advantages

We can guarantee the quality of the parts we use. We also have a quality control department that verifies the quality of all parts before they are incorporated into our products.

Instant Quotes

No more waiting around to get the perfect PCB & PCBA quote. You can get quotes instantly by uploading your design files.

No Minimum Order Quantity Limits

You can get PCB & PCBA quotes even for 1 piece/1 unit. It is a great advantage for small manufacturers who would like to scale up in the future.

Online Tracking

Get updates on your PCB & PCBA manufacturing project all through a website. You can also make changes to your project without the hassle of calling or emailing vendors.

Online Sourcing & Purchasing

No more dealing with suppliers by yourself. The online PCB & PCBA quote portals ensure they do all of the groundwork so you can focus on your innovations.

Intellectual Property

You can upload your designs through secure portals, without sending any documents via email. It is a foolproof way to safeguard your intellectual property.

Reliable Quality

ISO9001, ISO13485, IATF16949, RoHS, IPC Class 2 and higher.

Professionally Provide You With Comprehensive Services

PCB Bare Board Fabrication:

Twenty-Four (24) hours expedited service for 2-layer PCBs, 2-4 days for multi-layer PCBs. Produce over thousands unique PCB designs per month.

Current products manufactured include backplane, hybrid boards, HDI boards, High TG boards, High Frequency boards, Halogen Free boards, Flex & Rigid-flex boards, Metal Substrate boards, and more.

PCB Assembly Fabrication:

PCBAStore offers full Turn-Key and partial Turn-Key Circuit Board Assembly Services. We focus on both rigid PCB and flex PCB assembly. Our experienced team and state-of-the-art assembly equipment enable us to meet all your PCBA needs under one roof in an inexpensive way

Production Process

We have been offering full spec electronics manufacturing solutions for 17 years to meeting the needs of our customers from different industries in terms of cost-effectiveness, quality, delivery and other requests.
